Vision Inspection System

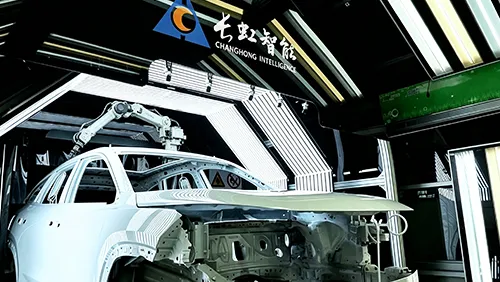

Changhong's paint inspection system leverages industrial cameras, specialised illumination, image processing, and artificial intelligence to rapidly and accurately examine the coated surface. It autonomously identifies particles, depressions, indentations, colour variations, blemishes, and orange peel, thereafter locating, categorising, assessing, and recording each imperfection. It can replace manual visual inspection, significantly reducing miss and false-positive rates, while supplying a defect database with comprehensive, detailed, and reporting dashboards for process enhancement.
Architecture Overview

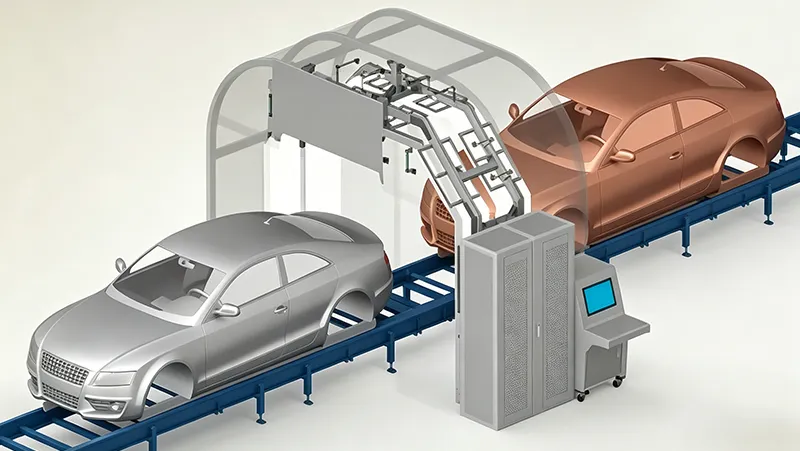

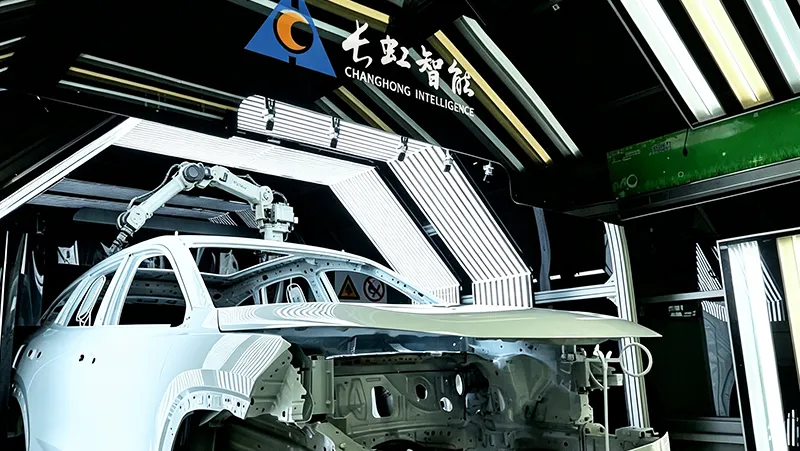

Tunnel-type inspection unit
Visual imaging, defect detection
Touch-up station
Defects displayed by zone based on vehicle body location
End-of-line inspection station
Display/edit inspection line results
End-of-line inspection station
Report generation / electronic statistical sheets
High-precision, real-time positioning-based augmented display system
Existing screen display
High-precision projected overlay display
Defect location, type, size, and handling recommendations, etc.
In addition to conventional screen-based display methods, a high-precision projection-based tracking display system may also be employed; this system utilizes two to four projectors to project defect information onto the corresponding locations of the moving vehicle body.
- Detection rate: validated across more than 30,000 bodies, the system reaches a 98.6% body-defect detection rate.
- Installation and commissioning: installed within 3 days of downtime, with model-and-color commissioning of 3 days per color.
- Edge blind zone: after on-site commissioning, the system detects defects located within 3 mm of the edge across all body zones.
- Detection precision: the system detects paint defects down to a minimum particle size of 0.15 mm.
